ROBOTICS / AUTOMATION

Motion, sensing and workholding hardware designed as an adjustable system

End effectors, mounts and fixtures must preserve alignment while keeping moving mass, cable routing and service access under control.

OPERATING CONSTRAINTS

Motion exposes alignment and service errors quickly

Motion datum

Mounting and bearing interfaces preserve the intended axis.

Part context

Adapters, fingers and lightweight structures.

Release review

Verify locating and mating relationships.

Payload and stiffness

Moving mass, acceleration and reach shape the part.

Part context

Adapters, fingers and lightweight structures.

Release review

Inspect rail, bearing, sensor and tool features.

Serviceability

Cables, sensors and tooling need replacement access.

Part context

Camera and lighting brackets with adjustment.

Release review

Confirm fastener, cable and replacement access.

REPRESENTATIVE COMPONENTS

Hardware organised around movement, sensing and workholding

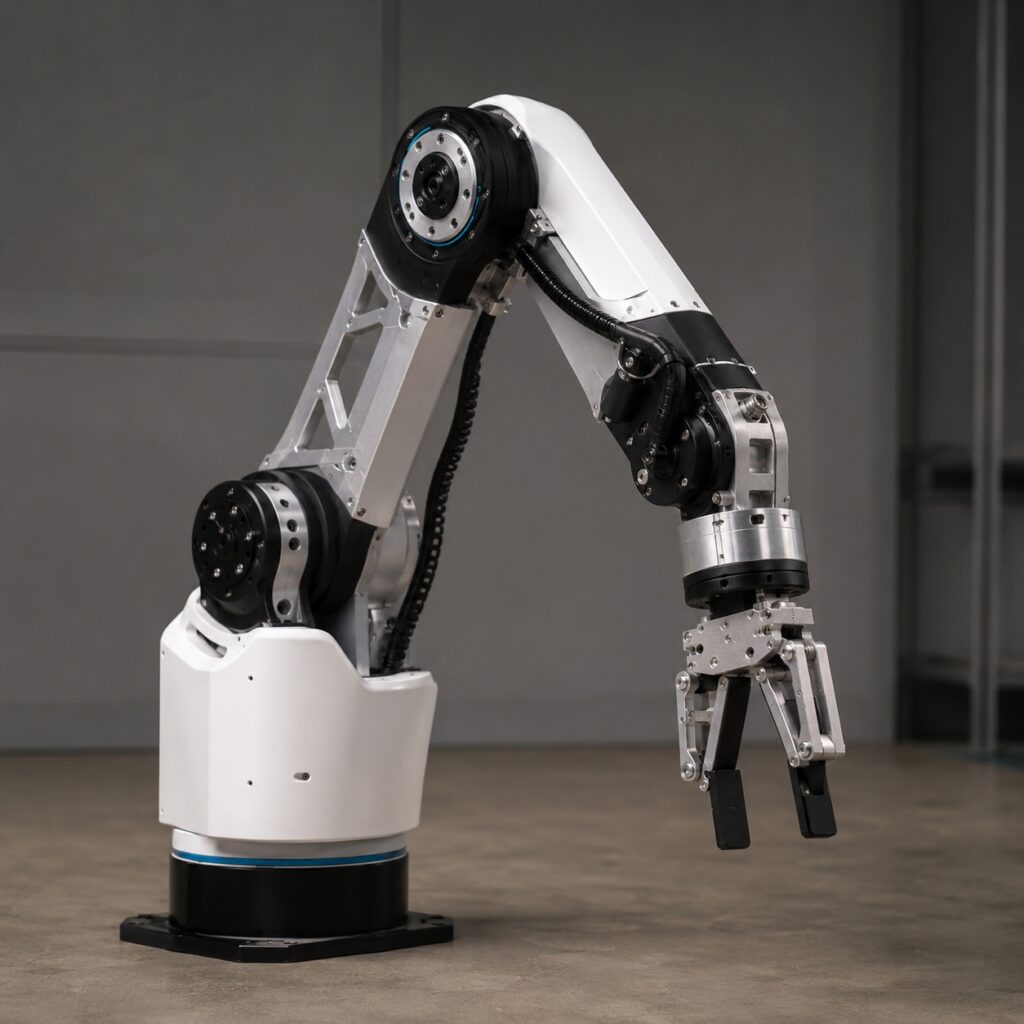

End-of-arm tooling

Adapters, fingers and lightweight structures.

Vision and sensing mounts

Camera and lighting brackets with adjustment.

Fixtures and guarding

Nests, locators, covers and line hardware.

MANUFACTURING ROUTE

Keep motion datums stable from prototype to repeat build

Multi-axis machining

Control complex interfaces with fewer datum transfers.

Sheet and additive

Build guards, cable guides and fast prototypes.

Assembly-aware finish

Protect fits, threads and electrical contacts.

MATERIALS, FINISHES AND RELEASE

Lightweight metals, wear interfaces and protective finishes

Aluminium suits moving structures; steel and stainless handle load and wear; polymers guide cables and isolate interfaces. Protect fits, rails, bearings and contacts.

Verify axes, locating features, bearing/rail interfaces, adjustment range and tool-change access in assembly context.

EVIDENCE BEFORE RELEASE

Inspect alignment, motion interfaces and serviceability

Alignment and fit

Verify locating and mating relationships.

Motion interfaces

Inspect rail, bearing, sensor and tool features.

Service review

Confirm fastener, cable and replacement access.

ENGINEERING KNOWLEDGE

Design automation hardware for calibration and maintenance

Define the motion datum, payload, sensor field of view, cable bend space, replaceable contact features and setup access.

START WITH THE PART

Send the automation-hardware package

Share payload, motion datums, assembly context, material, finish and validation needs.
