AEROSPACE / UAV

Flight and payload hardware built around mass, datum continuity and traceability

Lightweight structures, sensor housings and ground fixtures need controlled interfaces, thin-wall strategy and release evidence.

OPERATING CONSTRAINTS

Weight, stiffness and traceability shape the route

Mass efficiency

Remove weight without weakening load paths.

Part context

Lightweight plates and multi-face interfaces.

Release review

Record critical interfaces from the drawing.

Datum continuity

Keep payload and mounting interfaces related.

Part context

Enclosures with alignment and sealed features.

Release review

Use gauges or mating references where useful.

Documentation

Define material, finish and release records.

Part context

Assembly, test and transport hardware.

Release review

Confirm finish coverage and burr control.

REPRESENTATIVE COMPONENTS

Parts grouped by flight, payload and ground function

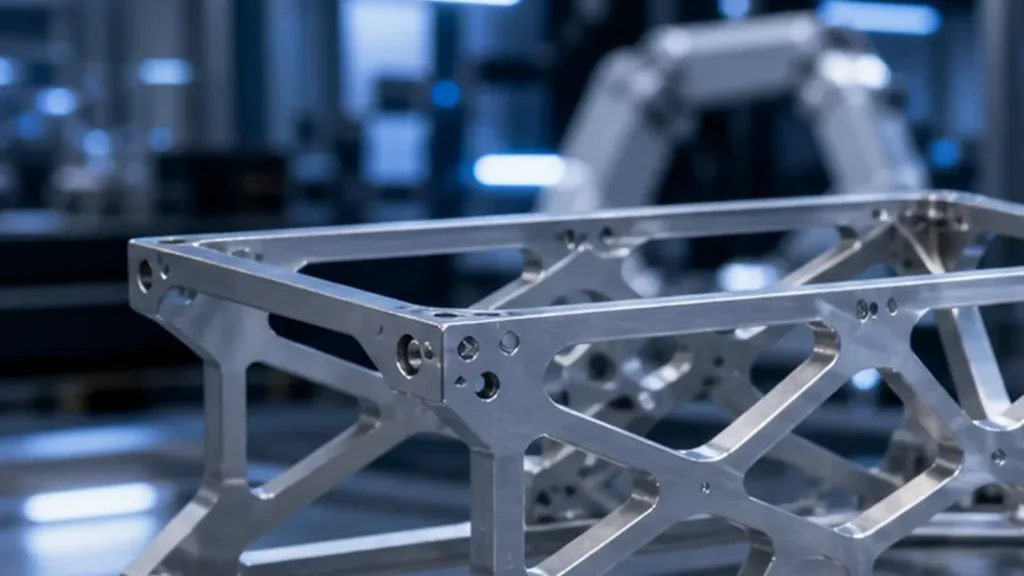

Payload mounts

Lightweight plates and multi-face interfaces.

Sensor housings

Enclosures with alignment and sealed features.

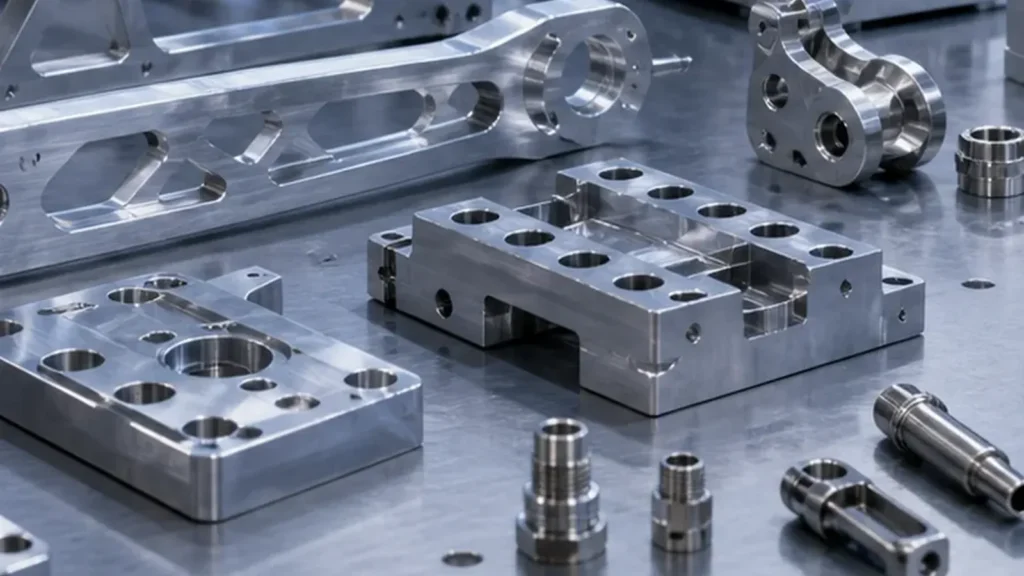

Ground fixtures

Assembly, test and transport hardware.

MANUFACTURING ROUTE

Control the setup before removing mass

Multi-axis milling

Reduce datum transfers on light-weighted geometry.

Turning plus milling

Control bores, flanges and secondary interfaces.

Sheet and finishing

Build guards and panels with coating-aware features.

MATERIALS, FINISHES AND RELEASE

Aircraft aluminium, stainless and engineering plastics

Coordinate alloy, condition and finish with mass, corrosion, electrical interfaces and inspection. Allow for anodizing on fit-sensitive dimensions.

Identify flight-critical datums and interfaces on the drawing; define material/finish records and first-article evidence where required.

EVIDENCE BEFORE RELEASE

Evidence follows the flight-relevant interface

First-article dimensions

Record critical interfaces from the drawing.

Surface and edge review

Confirm finish coverage and burr control.

Fit evidence

Use gauges or mating references where useful.

ENGINEERING KNOWLEDGE

Plan thin walls, payload interfaces and repeatable datums

Review wall transitions, inspection access, coating allowance and setup transfer before releasing complex lightweight geometry.

START WITH THE PART

Send the flight-hardware package

Include CAD, drawing, alloy, finish, critical datums and traceability requirements.
