Thermal Interface Plates and Heat Sink Mounts for Power Electronics

How to plan machined thermal interface plates, heat sink mounts, flat contact surfaces and support hardware for inverters, converters and charging modules.

Table of Contents

Power electronics components need stable thermal contact, predictable mounting pressure and practical assembly hardware. A thermal plate or heat sink mount must be designed for both heat transfer and manufacturability.

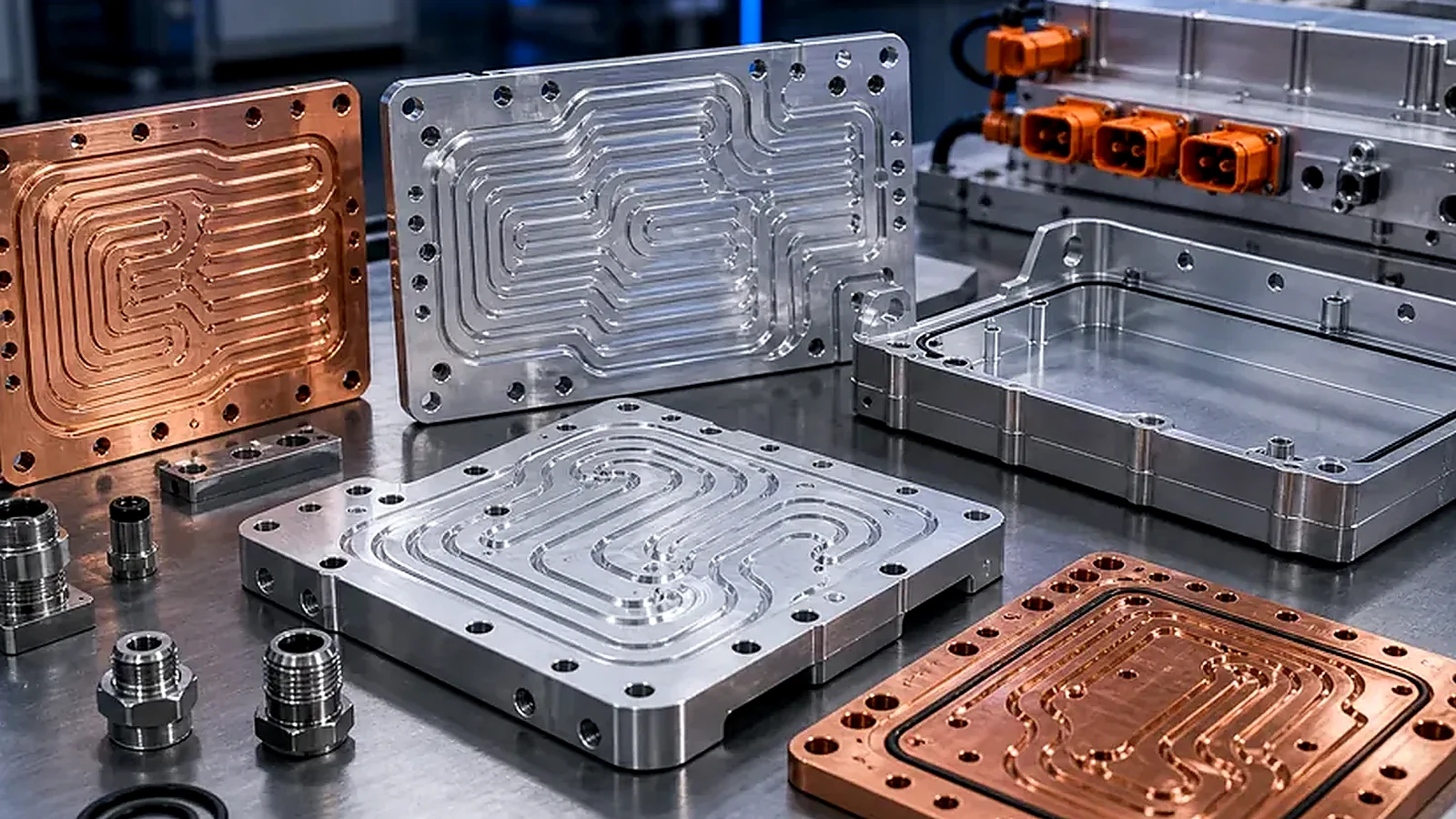

Machined thermal interface plates and heat sink mounts for power electronics components.

Application Context

How to plan machined thermal interface plates, heat sink mounts, flat contact surfaces and support hardware for inverters, converters and charging modules. These parts are usually reviewed by mechanical engineers, purchasing teams and manufacturing engineers before the final supplier route is approved.

For Energy Storage & Power Electronics, the right component design should connect the application requirement to a realistic manufacturing route. A good drawing package makes it clear which surfaces carry load, which holes locate the assembly, which faces are cosmetic and which features only support packaging or service access.

  • inverter modules
  • converter assemblies
  • charging modules
  • industrial drive hardware

Common Part Types

Typical custom components for this topic include the following part families. The final geometry may be machined, fabricated, printed, molded or finished by a secondary process depending on quantity and function.

  • thermal interface plates
  • heat sink mounts
  • machined aluminum blocks
  • copper heat spreaders
  • fastener bosses
  • support brackets

Even when a component looks simple, the details around edge quality, hole location, fastener clearance, wall thickness and coating build-up can decide whether the part assembles smoothly or creates repeated rework.

Material and Process Considerations

Material choice should be based on stiffness, weight, corrosion resistance, temperature exposure, appearance, conductivity, insulation needs and expected production volume. Prototype material can be different from production material when the first goal is fit checking or assembly validation.

  • aluminum for heat sink mounts
  • copper for selected thermal interfaces
  • stainless steel for support hardware
  • coated sheet metal where applicable

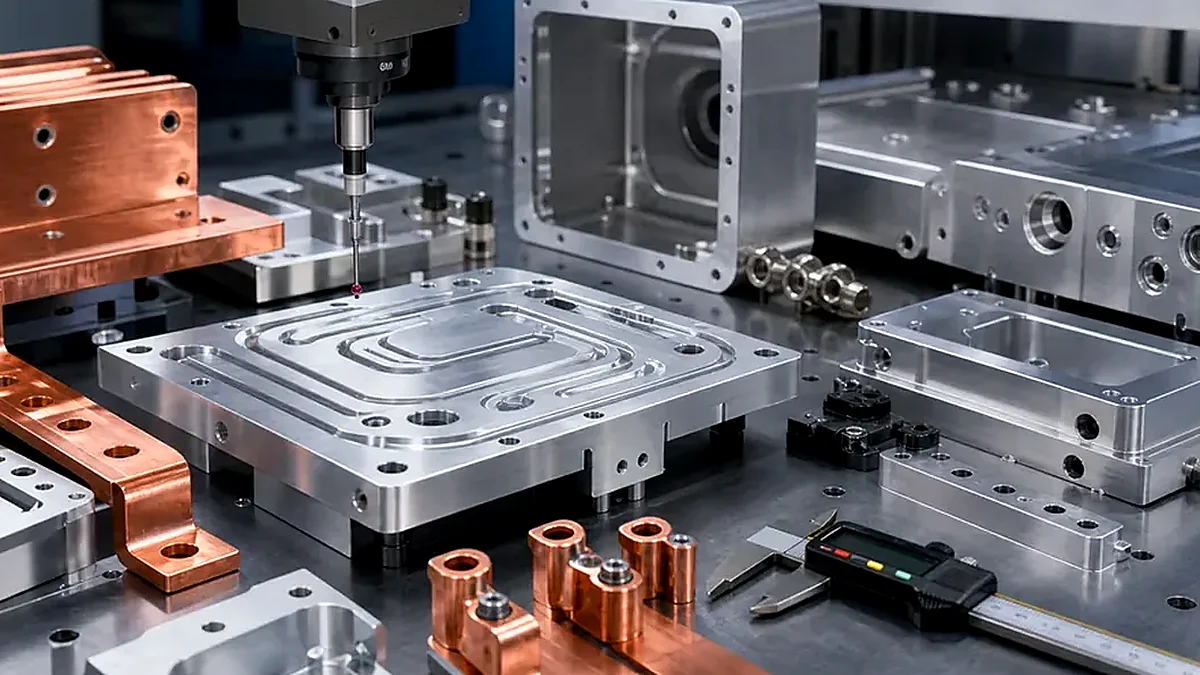

Close-up of a thermal plate surface and heat sink mounting features for power electronics.

Manufacturing Route Selection

CNC machining is useful for accurate faces, threaded holes, pocket geometry and compact mechanical interfaces. Sheet metal fabrication is useful for panels, trays, covers, guards and cabinet hardware. 3D printing is useful for early validation, lightweight prototype shapes and fixture concepts. Injection molding, die casting or secondary assembly may become practical when the design and quantity support tooling.

DFM Notes Before Releasing Drawings

A focused DFM review should identify the features that truly control function. This protects the assembly while preventing the drawing from becoming more expensive than the part requires.

  • flatness on contact surfaces
  • surface roughness notes
  • fastener pattern balance
  • pocket depth
  • thermal interface material clearance
  • inspection datum selection

Useful drawings separate functional dimensions from reference geometry. They also show thread standards, insert requirements, bend notes, surface finish expectations and the difference between appearance surfaces and hidden support areas.

Surface Finishing and Assembly Notes

Surface finishing may include anodizing, passivation, nickel plating, polishing, powder coating, black oxide or other coatings where applicable. If a surface is used for contact, grounding, sealing, bearing, appearance or sliding, that requirement should be stated clearly.

Assembly-related details such as inserts, threaded holes, captive fasteners, masking, burr limits and packaging should be included in the RFQ package. Small notes at this stage often prevent late changes after the first sample run.

Inspection and Quality Planning

Inspection should match the way the part is used. Critical mounting holes, datum faces, flat surfaces, threads, bend positions, contact surfaces and cosmetic faces may need more attention than general outside dimensions. Inspection reports can be prepared according to customer requirements.

When a part is part of a larger assembly, it is helpful to explain the mating components, expected fastener pattern, load direction and any areas where measurement access is limited.
