Robot Cell Guard Panels and Access Covers: Sheet Metal DFM Guide

Sheet metal DFM notes for robot cell guard panels, access covers, equipment doors, tabs, cutouts and protective hardware.

Table of Contents

Robot cells need guards and access covers that protect equipment while allowing maintenance, observation and adjustment. Sheet metal parts must fit the frame, leave space for cables and avoid sharp or weak features.

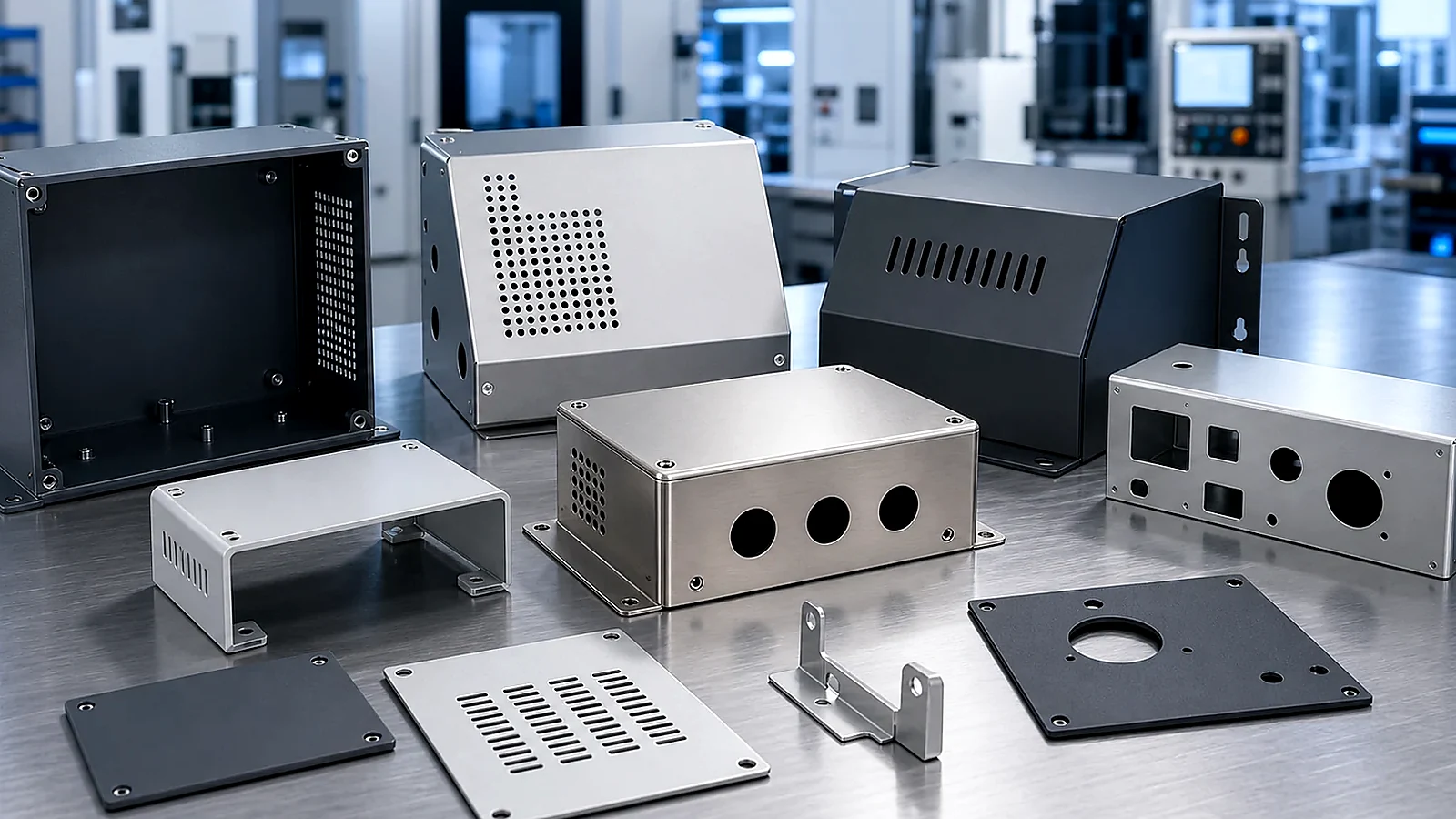

Sheet metal robot cell guard panels and access covers for automation equipment.

Application Context

Sheet metal DFM notes for robot cell guard panels, access covers, equipment doors, tabs, cutouts and protective hardware. These parts are usually reviewed by mechanical engineers, purchasing teams and manufacturing engineers before the final supplier route is approved.

For Robotics & Automation, the right component design should connect the application requirement to a realistic manufacturing route. A good drawing package makes it clear which surfaces carry load, which holes locate the assembly, which faces are cosmetic and which features only support packaging or service access.

  • robot cell guards
  • automation equipment covers
  • access doors
  • protective panels
  • controller cabinet covers

Common Part Types

Typical custom components for this topic include the following part families. The final geometry may be machined, fabricated, printed, molded or finished by a secondary process depending on quantity and function.

  • formed panels
  • hinged covers
  • perforated guards
  • cutout panels
  • brackets
  • mounting tabs

Even when a component looks simple, the details around edge quality, hole location, fastener clearance, wall thickness and coating build-up can decide whether the part assembles smoothly or creates repeated rework.

Material and Process Considerations

Material choice should be based on stiffness, weight, corrosion resistance, temperature exposure, appearance, conductivity, insulation needs and expected production volume. Prototype material can be different from production material when the first goal is fit checking or assembly validation.

  • carbon steel with powder coating
  • stainless steel
  • aluminum sheet
  • clear plastic panels where applicable

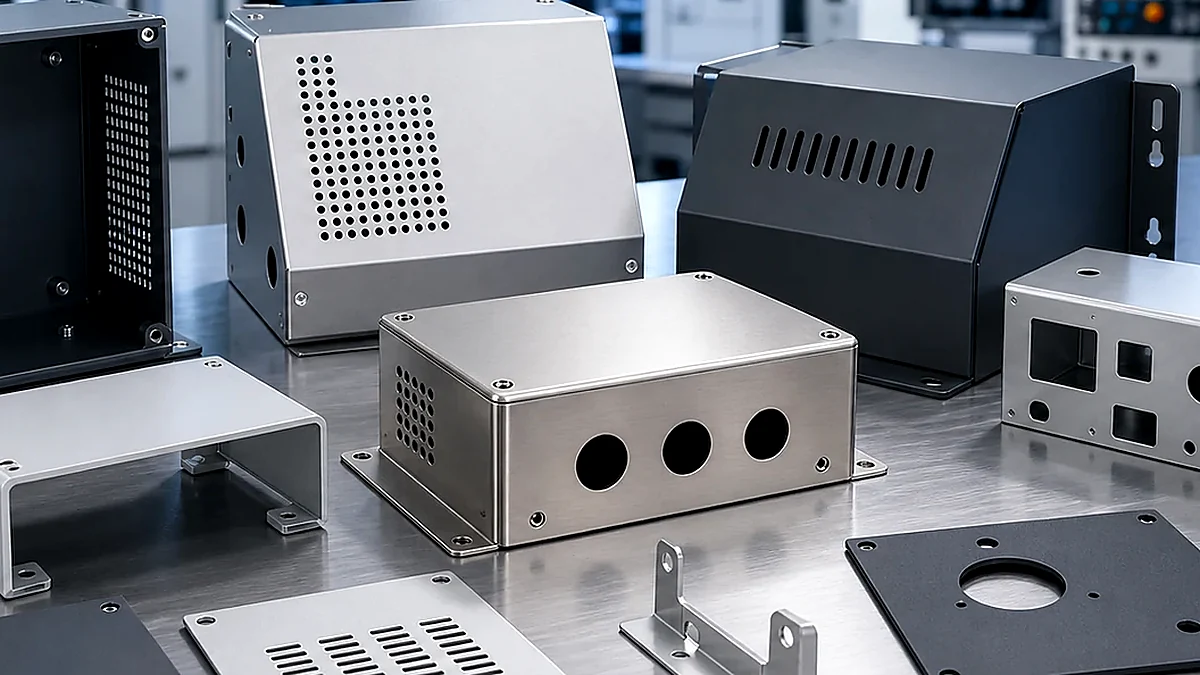

Close-up of formed sheet metal tabs, cutouts and fastener areas on automation covers.

Manufacturing Route Selection

CNC machining is useful for accurate faces, threaded holes, pocket geometry and compact mechanical interfaces. Sheet metal fabrication is useful for panels, trays, covers, guards and cabinet hardware. 3D printing is useful for early validation, lightweight prototype shapes and fixture concepts. Injection molding, die casting or secondary assembly may become practical when the design and quantity support tooling.

DFM Notes Before Releasing Drawings

A focused DFM review should identify the features that truly control function. This protects the assembly while preventing the drawing from becoming more expensive than the part requires.

  • guard opening size
  • bend relief
  • hinge and latch locations
  • sharp edge control
  • powder coating clearance
  • service access

Useful drawings separate functional dimensions from reference geometry. They also show thread standards, insert requirements, bend notes, surface finish expectations and the difference between appearance surfaces and hidden support areas.

Surface Finishing and Assembly Notes

Surface finishing may include anodizing, passivation, nickel plating, polishing, powder coating, black oxide or other coatings where applicable. If a surface is used for contact, grounding, sealing, bearing, appearance or sliding, that requirement should be stated clearly.

Assembly-related details such as inserts, threaded holes, captive fasteners, masking, burr limits and packaging should be included in the RFQ package. Small notes at this stage often prevent late changes after the first sample run.

Inspection and Quality Planning

Inspection should match the way the part is used. Critical mounting holes, datum faces, flat surfaces, threads, bend positions, contact surfaces and cosmetic faces may need more attention than general outside dimensions. Inspection reports can be prepared according to customer requirements.

When a part is part of a larger assembly, it is helpful to explain the mating components, expected fastener pattern, load direction and any areas where measurement access is limited.

Useful External Engineering References

The following references can help engineering teams discuss manufacturing, tolerancing or application requirements with a common vocabulary:

RFQ Checklist

To prepare a fast and accurate quotation for robot cell guard panels and access covers, please send:

  • 2D drawings and 3D CAD files
  • Material, quantity and expected annual demand
  • Critical tolerance, datum and inspection requirements
  • Surface finish, coating, masking or appearance requirements
  • Assembly, insert, fastening or packaging requirements
  • Prototype stage, validation purpose or production usage notes

How Debaolong Supports This Type of Part

Debaolong supports custom component manufacturing from prototype to production through drawing review, process selection, CNC machining, sheet metal fabrication, 3D printing, plastic part support, surface finishing and inspection. The team can help evaluate whether a part should start as a prototype, a small-batch machined component, a fabricated assembly or a production-ready part.

For a broader view of this application area, visit the Robotics & Automation solution page or the Manufacturing Engineering Knowledge Center.

FAQ

What information should be included in the RFQ?

Send 2D drawings, 3D files, material requirements, quantity, surface finish notes and any critical assembly or inspection requirements.

Can prototype parts use a different manufacturing route than production parts?

Yes. A prototype may use 3D printing, CNC machining or simplified sheet metal to validate fit before the final production route is selected.

How should critical tolerances be shown on the drawing?

Mark functional datums, mounting faces, hole patterns, flatness and inspection-critical features clearly, while leaving non-critical geometry under a practical general tolerance.

Can Debaolong support both mechanical parts and finishing?

Debaolong can support CNC machining, sheet metal fabrication, 3D printing, injection molding, surface finishing and inspection based on drawings and project requirements.

How can unnecessary manufacturing cost be reduced?

Avoid over-tolerancing, define only functional cosmetic surfaces, keep tool access practical and share the expected quantity early so the process route can be selected correctly.

Need custom robot cell guard panels and access covers? Send drawings, STEP files, material requirements, quantity, tolerance notes and surface finish needs through the Robotics & Automation solution page.
